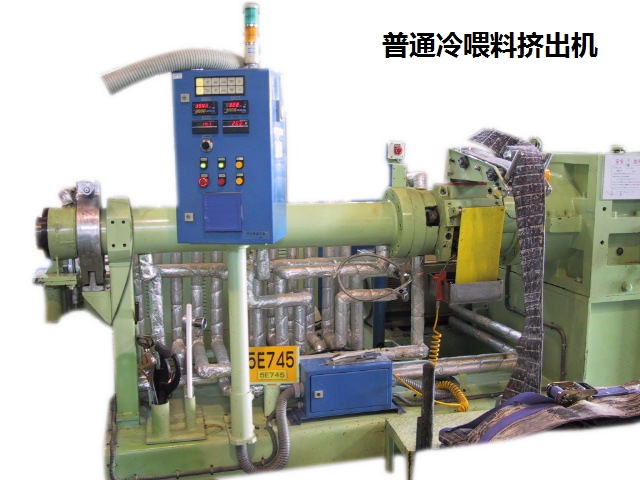

●普通冷喂料擠出機 General Cold Feed Extruder
The extruder is constructed by barrel, screw, feeding devices, motors and gears etc. Rubber in form of strip, granular, plate at room temperature can be directly supplied to extruder without preheating. Special design of screw ensures plasticizing effect and low temperature performance while improving shape & dimension accuracy of products.
●普通冷喂料擠出機技術參數 Technical Parameters of General Cold Feed Extruder
類別Type | XJW-30 | XJW-40 | XJW-50 | XJW-60 | XJW-90 | XJW-120
| XJW-150
| 螺桿直徑 Screw Diameter(mm) | 30 | 40 | 50 | 60 | 90 | 120 | 150 | 螺桿長徑比(L/D) L/D Ratio | 10、12、14、16、22
| 主電機功率 Power of main motor(kw) | 4 | 4 | 7.5 | 22 | 55 | 75 | 185 | 螺桿轉速（轉/分鐘） Speed of screw(r/min) | 80 | 80 | 75 | 80 | 60 | 50 | 45 | 產量(kg/h) Production Capacity(kg/h) | ~8 | ~10 | ~18 | ~180 | ~400 | ~800 | ~1000 | 單價(RMB) U.Price(RMB) |
|
|
|
|
|
|
|
|
